AD9708ARUZRL7
Manufacturer:
Analog Devices
Mfr.Part #:
AD9708ARUZRL7
Datasheet:
Description:

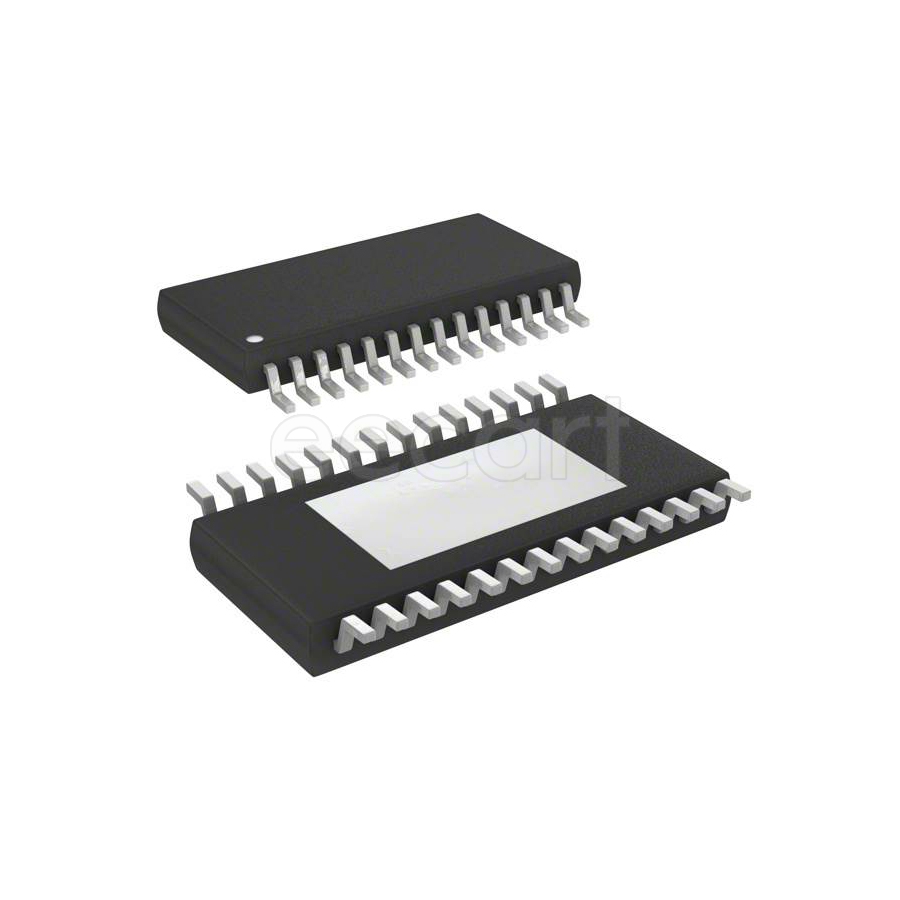

Digital to Analog Converters (DACs) TSSOP-28 SMD/SMT number of channels:1 number of bits:8 Number of D/A Converters:1
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 28 |
| Radiation Hardening | No |
| Contact Plating | Tin |
| Interface | Parallel |
| Min Input Voltage | 100 mV |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Production |
| Max Power Dissipation | 175 mW |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.7 V |
| Power Dissipation | 175 mW |
| Number of Channels | 1 |
| Number of Bits | 8 |
| Supply Type | Analog, Digital |
| Number of DAC Channels | 1 |
| Max Input Voltage | 1.25 V |
| Sampling Rate | 125 Msps |
| Integral Nonlinearity (INL) | 0.5 LSB |
| Number of Converters | 1 |
| Settling Time | 35 ns |
| Min Output Voltage | 100 mV |
| Resolution | 8 bit |
| Max Output Voltage | 2.5 V |
| Number of D/A Converters | 1 |
| Signal to Noise Ratio (SNR) | 50 dB |
| Conversion Rate | 125 Msps |
| Differential Output | Yes |
| Output Type | Current - Unbuffered |
| RoHS | Compliant |
| Packaging | Reel |
| Reference Type | External, Internal |
| Interface Type(Data Interface) | Parallel |
| Max Digital Supply Voltage | 5.5 V |
| Min Digital Supply Voltage | 2.7 V |
| Analog Supply Voltage | 2.7 V to 5.5 V |
Stock: 584
Distributors
pcbx
pcbxUnit Price$9.54358
Ext.Price$9.54358
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $9.54358 | $9.54358 |
| 10 | $6.65819 | $66.58190 |
| 25 | $5.90756 | $147.68900 |
| 50 | $5.46571 | $273.28550 |
| 100 | $5.05691 | $505.69100 |
| 300 | $5.04631 | $1513.89300 |
| 500 | $5.03573 | $2517.86500 |
| 1000 | $5.02527 | $5025.27000 |
